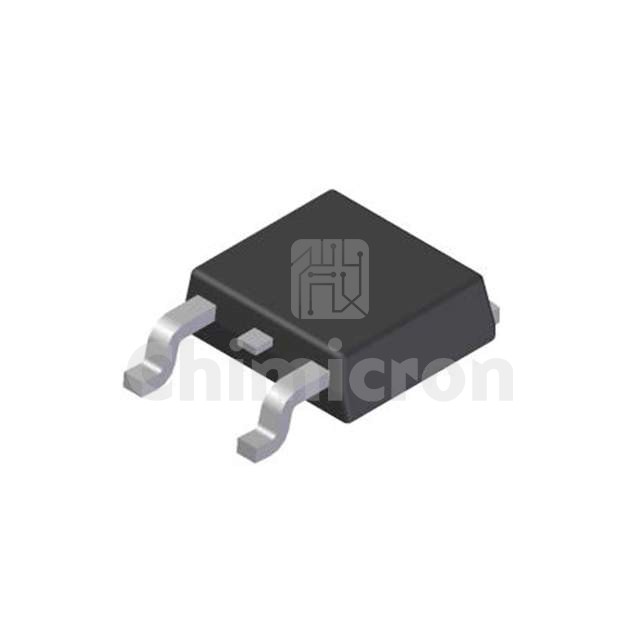

DMN3024LK3-13
DMN3024LK3-13

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MOSFET N-CH 30V 9.78A TO252-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:1000000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMN3024LK3-13 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 1000000 pieces of DMN3024LK3-13 in stock available now. Submit an inquiry for DMN3024LK3-13 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C9.78A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs24mOhm @ 7A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12.9 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds608 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.17W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252-3
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
