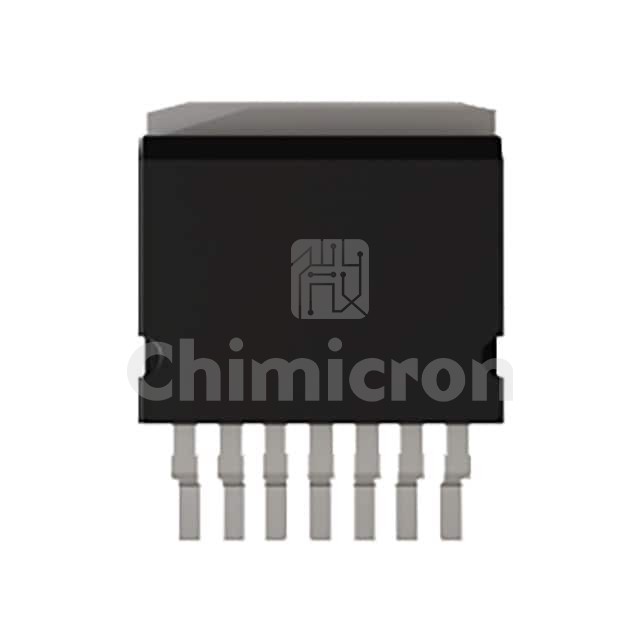

SCT3080KW7TL
Manufacturer: ROHM Semiconductor
Description: TRANS SJT N-CH 1200V 30A TO263-7
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:1316
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SCT3080KW7TL ROHM Semiconductor at chimicron.com. We have 1316 pieces of SCT3080KW7TL in stock available now. Submit an inquiry for SCT3080KW7TL or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologySiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs104mOhm @ 10A, 18V
Vgs(th) (Max) @ Id5.6V @ 5mA
Gate Charge (Qg) (Max) @ Vgs60 nC @ 18 V
Vgs (Max)+22V, -4V
Input Capacitance (Ciss) (Max) @ Vds785 pF @ 800 V
FET Feature-
Power Dissipation (Max)159W
Operating Temperature175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-263-7
Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
