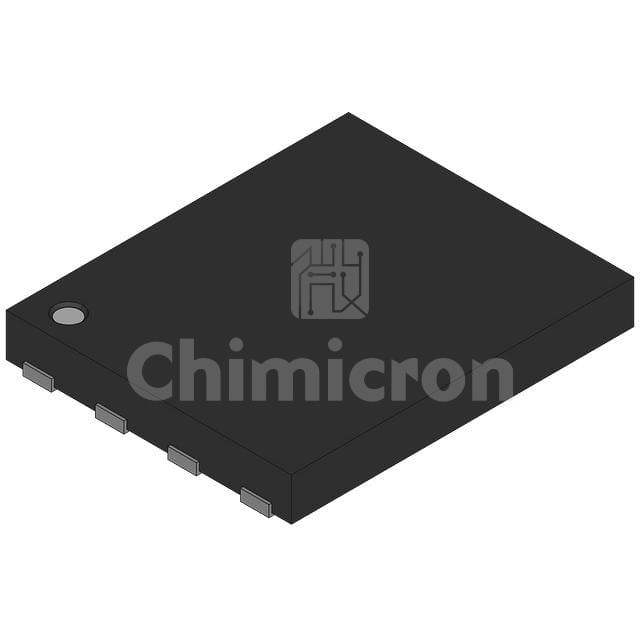

IRFH5250DTRPBF
Manufacturer: Rochester Electronics
Description: IRFH5250 - 12V-300V N-CHANNEL PO
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:20000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRFH5250DTRPBF Rochester Electronics at chimicron.com. We have 20000 pieces of IRFH5250DTRPBF in stock available now. Submit an inquiry for IRFH5250DTRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C40A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id2.35V @ 150µA
Gate Charge (Qg) (Max) @ Vgs83 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6.115 pF @ 13 V
FET Feature-
Power Dissipation (Max)3.6W (Ta), 156W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PQFN (5x6)
Package / Case8-PowerVDFN
