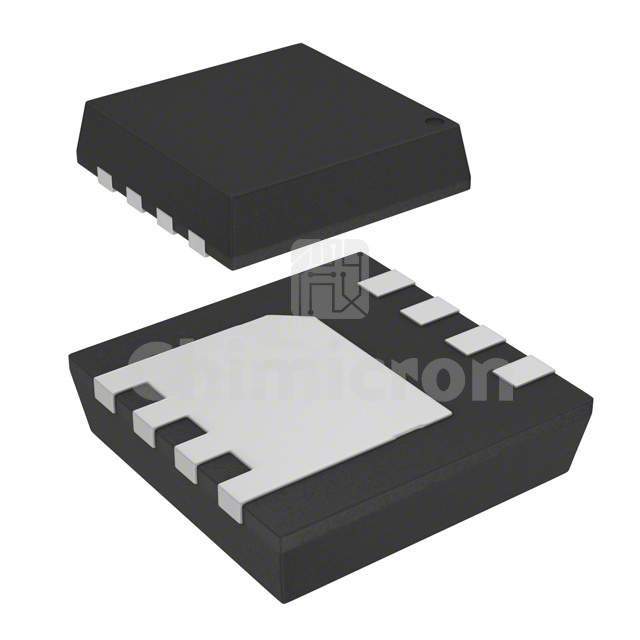

AON7254
Manufacturer: Alpha and Omega Semiconductor, Inc.
Description: MOSFET N-CH 150V 5.5A/17A 8DFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: AlphaMOS
In Stock:280000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AON7254 Alpha and Omega Semiconductor, Inc. at chimicron.com. We have 280000 pieces of AON7254 in stock available now. Submit an inquiry for AON7254 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAlphaMOS
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C5.5A (Ta), 17A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs54mOhm @ 5A, 10V
Vgs(th) (Max) @ Id2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs20 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds675 pF @ 75 V
FET Feature-
Power Dissipation (Max)4.1W (Ta), 39W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN-EP (3.3x3.3)
Package / Case8-PowerWDFN
