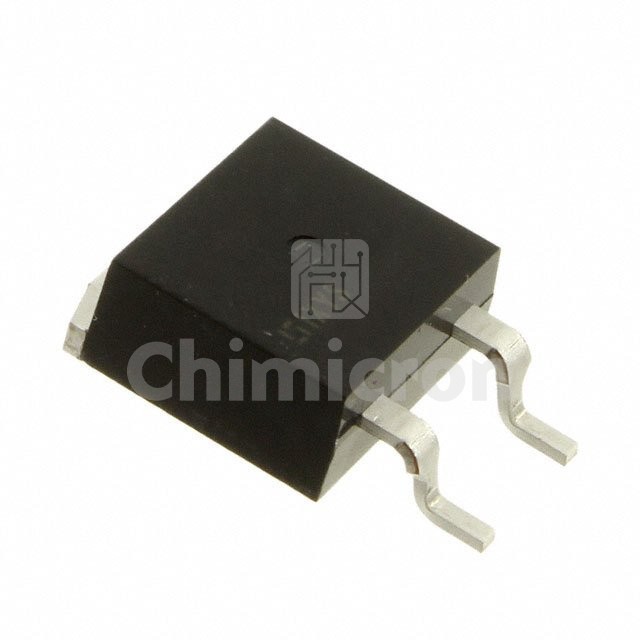

IXFA20N85XHV
Manufacturer: Wickmann / Littelfuse
Description: MOSFET N-CH 850V 20A TO263
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HiPerFET™
In Stock:8800
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IXFA20N85XHV Wickmann / Littelfuse at chimicron.com. We have 8800 pieces of IXFA20N85XHV in stock available now. Submit an inquiry for IXFA20N85XHV or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHiPerFET™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)850 V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs330mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id5.5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs63 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds1660 pF @ 25 V
FET Feature-
Power Dissipation (Max)540W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-263 (D2Pak-HV)
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
