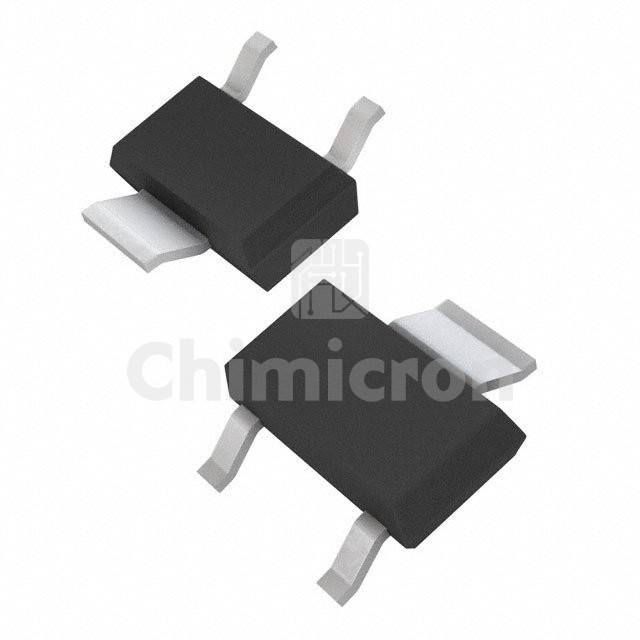

IPN80R750P7ATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 800V 7A SOT223
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: CoolMOS™ P7
In Stock:300000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPN80R750P7ATMA1 IR (Infineon Technologies) at chimicron.com. We have 300000 pieces of IPN80R750P7ATMA1 in stock available now. Submit an inquiry for IPN80R750P7ATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesCoolMOS™ P7
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs750mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id3.5V @ 140µA
Gate Charge (Qg) (Max) @ Vgs17 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds460 pF @ 500 V
FET Feature-
Power Dissipation (Max)7.2W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-SOT223
Package / CaseTO-261-3
