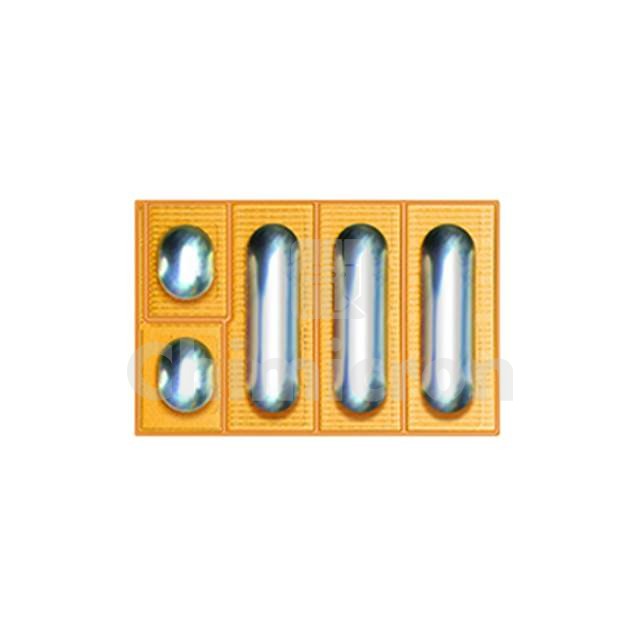

EPC2014C
EPC2014C

Manufacturer: EPC

Description: GANFET N-CH 40V 10A DIE OUTLINE
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: eGaN®
In Stock:3069
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the EPC2014C EPC at chimicron.com. We have 3069 pieces of EPC2014C in stock available now. Submit an inquiry for EPC2014C or send an email to [email protected], we will contact you in 24 hours.
Product Details
SerieseGaN®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyGaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C10A (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V
Rds On (Max) @ Id, Vgs16mOhm @ 10A, 5V
Vgs(th) (Max) @ Id2.5V @ 2mA
Gate Charge (Qg) (Max) @ Vgs2.5 nC @ 5 V
Vgs (Max)+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds300 pF @ 20 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDie Outline (5-Solder Bar)
Package / CaseDie
