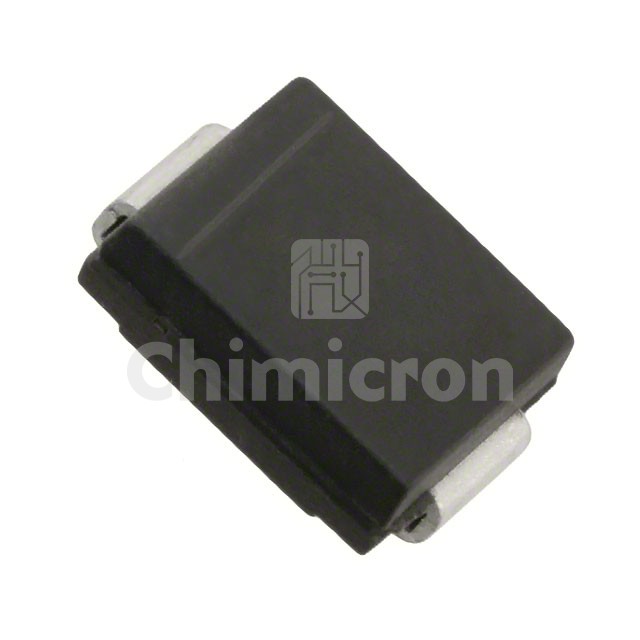

B560CQ-13-F
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: DIODE SCHOTTKY 60V 5A SMC
Category : Discrete Semiconductor Products
Family: Diodes - Rectifiers - Single
Series: Automotive, AEC-Q101
In Stock:500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the B560CQ-13-F Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 500000 pieces of B560CQ-13-F in stock available now. Submit an inquiry for B560CQ-13-F or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)60 V
Current - Average Rectified (Io)5A
Voltage - Forward (Vf) (Max) @ If700 mV @ 5 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr500 µA @ 60 V
Capacitance @ Vr, F300pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-214AB, SMC
Supplier Device PackageSMC
Operating Temperature - Junction-55°C ~ 150°C
