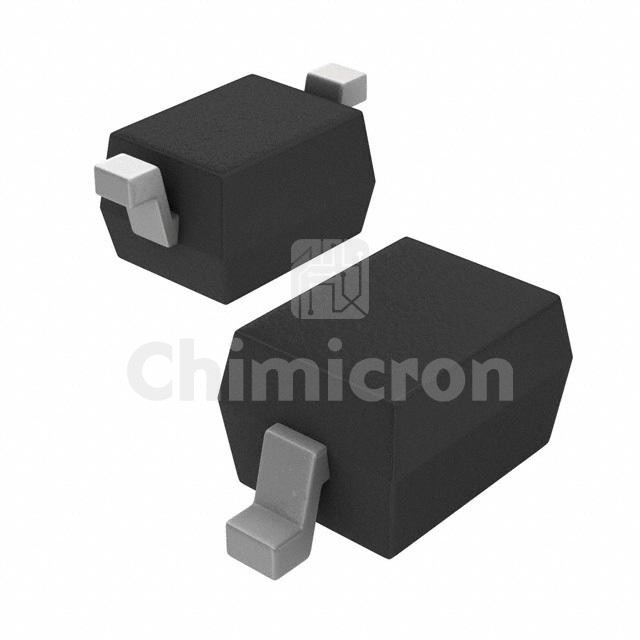

B0520WS-7-F
B0520WS-7-F

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: DIODE SCHOTTKY 20V 500MA SOD323
Category : Discrete Semiconductor Products
Family: Diodes - Rectifiers - Single
Series: -
In Stock:12600
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the B0520WS-7-F Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 12600 pieces of B0520WS-7-F in stock available now. Submit an inquiry for B0520WS-7-F or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)500mA
Voltage - Forward (Vf) (Max) @ If430 mV @ 500 mA
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr250 µA @ 20 V
Capacitance @ Vr, F58pF @ 0V, 1MHz
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
Operating Temperature - Junction-55°C ~ 125°C
