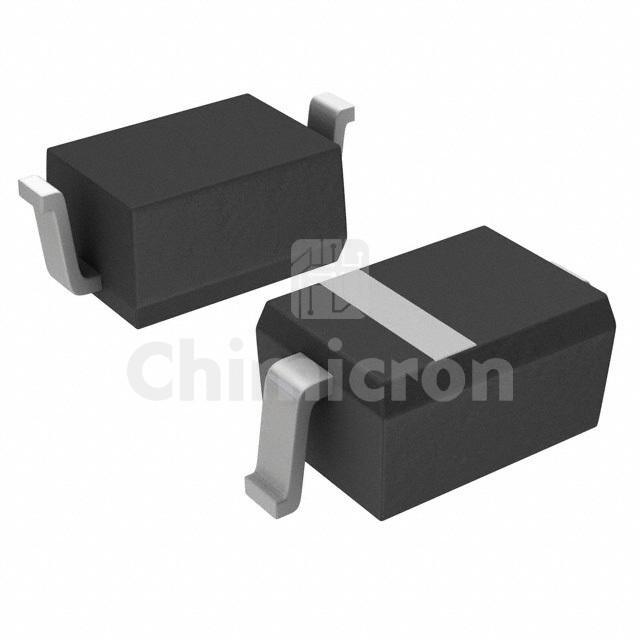

NSR1020MW2T3G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: DIODE SCHOTTKY 20V 1A SOD323
Category : Discrete Semiconductor Products
Family: Diodes - Rectifiers - Single
Series: -
In Stock:1160000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NSR1020MW2T3G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 1160000 pieces of NSR1020MW2T3G in stock available now. Submit an inquiry for NSR1020MW2T3G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)1A (DC)
Voltage - Forward (Vf) (Max) @ If540 mV @ 1 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr40 µA @ 15 V
Capacitance @ Vr, F29pF @ 5V, 1MHz
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
Operating Temperature - Junction125°C (Max)
