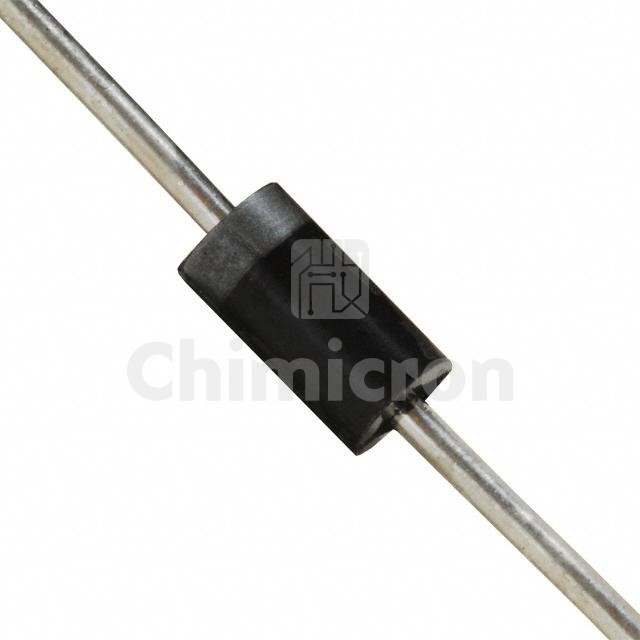

SB580
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: DIODE SCHOTTKY 80V 5A DO201AD
Category : Discrete Semiconductor Products
Family: Diodes - Rectifiers - Single
Series: -
In Stock:120000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SB580 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 120000 pieces of SB580 in stock available now. Submit an inquiry for SB580 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)80 V
Current - Average Rectified (Io)5A
Voltage - Forward (Vf) (Max) @ If850 mV @ 5 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr500 µA @ 80 V
Capacitance @ Vr, F380pF @ 4V, 1MHz
Mounting TypeThrough Hole
Package / CaseDO-201AD, Axial
Supplier Device PackageDO-201AD
Operating Temperature - Junction-55°C ~ 150°C
