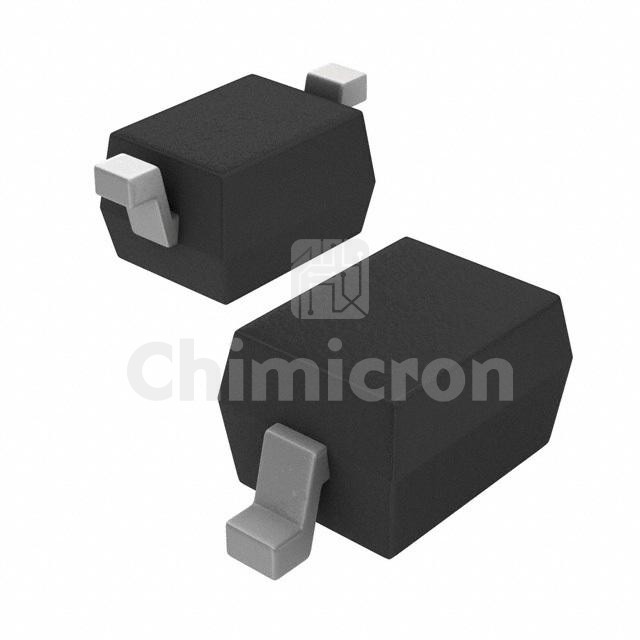

BAT760Q-7
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: DIODE SCHOTTKY 30V 1A SOD323
Category : Discrete Semiconductor Products
Family: Diodes - Rectifiers - Single
Series: Automotive, AEC-Q101
In Stock:5250
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BAT760Q-7 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 5250 pieces of BAT760Q-7 in stock available now. Submit an inquiry for BAT760Q-7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io)1A
Voltage - Forward (Vf) (Max) @ If550 mV @ 1 A
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr50 µA @ 15 V
Capacitance @ Vr, F25pF @ 5V, 1MHz
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
Operating Temperature - Junction-65°C ~ 150°C
