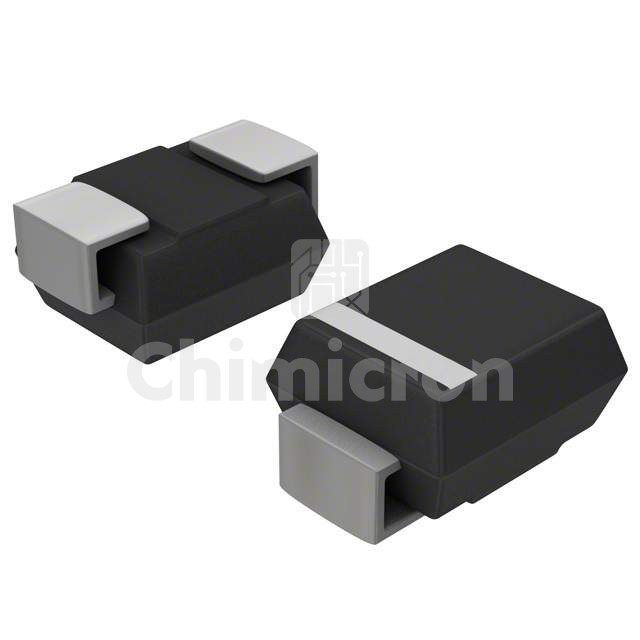

SD560BTR
Manufacturer: SMC Diode Solutions
Description: DIODE GEN PURP 600V 5A SMB
Category : Discrete Semiconductor Products
Family: Diodes - Rectifiers - Single
Series: -
In Stock:1102699
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SD560BTR SMC Diode Solutions at chimicron.com. We have 1102699 pieces of SD560BTR in stock available now. Submit an inquiry for SD560BTR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)600 V
Current - Average Rectified (Io)5A
Voltage - Forward (Vf) (Max) @ If1.2 V @ 5 A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr9 µA @ 600 V
Capacitance @ Vr, F50pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-214AA, SMB
Supplier Device PackageSMB
Operating Temperature - Junction-65°C ~ 175°C
