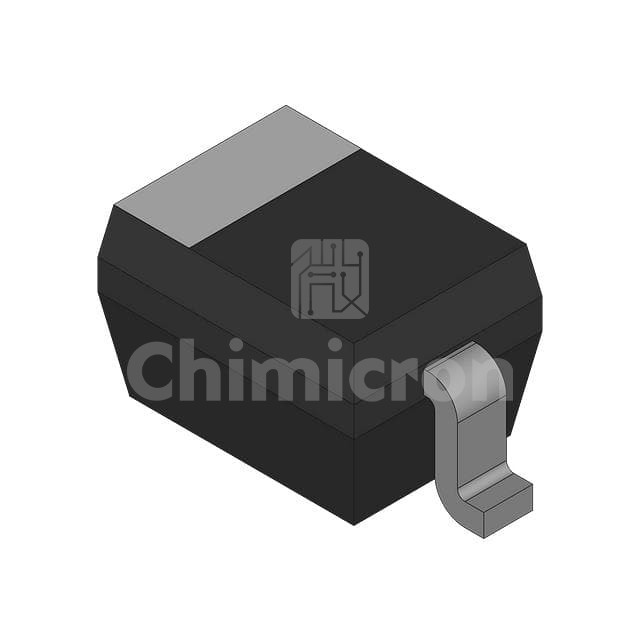

BAT760,115
Manufacturer: Nexperia
Description: DIODE SCHOTTKY 20V 1A SOD323
Category : Discrete Semiconductor Products
Family: Diodes - Rectifiers - Single
Series: -
In Stock:131939
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BAT760,115 Nexperia at chimicron.com. We have 131939 pieces of BAT760,115 in stock available now. Submit an inquiry for BAT760,115 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)1A (DC)
Voltage - Forward (Vf) (Max) @ If550 mV @ 1 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr50 µA @ 15 V
Capacitance @ Vr, F25pF @ 5V, 1MHz
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
Operating Temperature - Junction125°C (Max)
