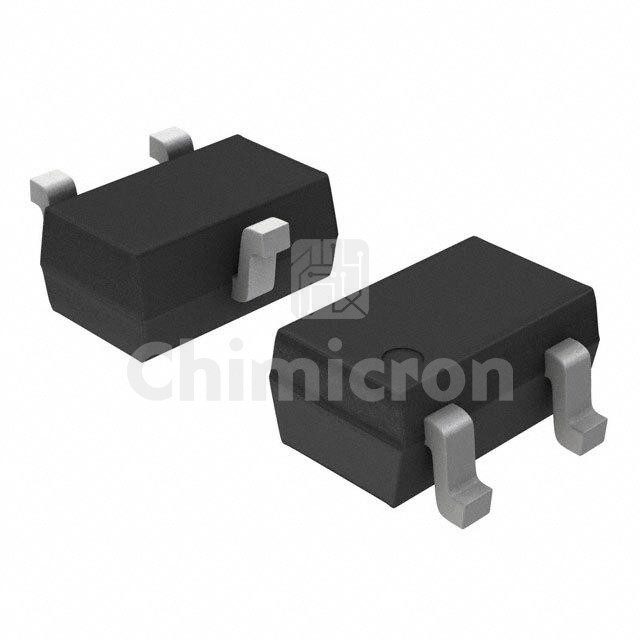

BAT54SWT1G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: DIODE ARRAY SCHOTTKY 30V SOT323
Category : Discrete Semiconductor Products
Family: Diodes - Rectifiers - Arrays
Series: -
In Stock:979650
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BAT54SWT1G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 979650 pieces of BAT54SWT1G in stock available now. Submit an inquiry for BAT54SWT1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Diode Configuration1 Pair Series Connection
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io) (per Diode)200mA (DC)
Voltage - Forward (Vf) (Max) @ If800 mV @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)5 ns
Current - Reverse Leakage @ Vr2 µA @ 25 V
Operating Temperature - Junction-55°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device PackageSOT-323
