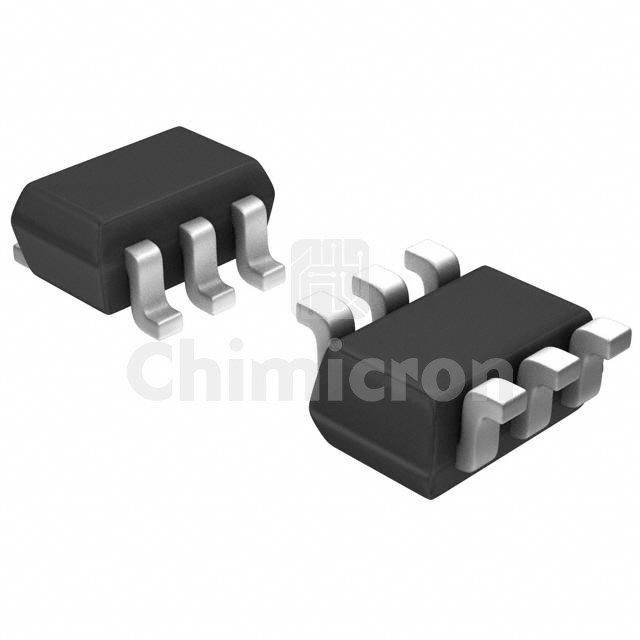

BAW56DW-7-F
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: DIODE ARRAY GP 75V 150MA SOT363
Category : Discrete Semiconductor Products
Family: Diodes - Rectifiers - Arrays
Series: -
In Stock:3000000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BAW56DW-7-F Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 3000000 pieces of BAW56DW-7-F in stock available now. Submit an inquiry for BAW56DW-7-F or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Diode Configuration2 Pair Common Anode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)75 V
Current - Average Rectified (Io) (per Diode)150mA
Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)4 ns
Current - Reverse Leakage @ Vr2.5 µA @ 75 V
Operating Temperature - Junction-65°C ~ 150°C
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSOT-363
