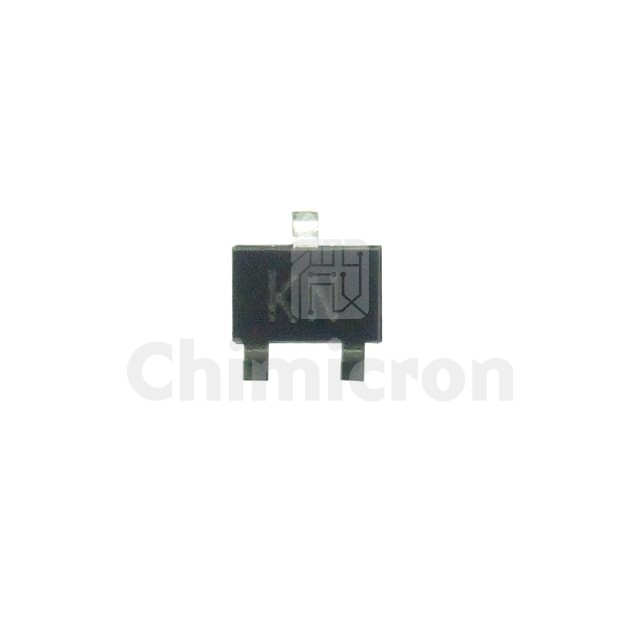

BAW56W
Manufacturer: DComponents
Description: DIODE ARRAY GP 75V 150MA SOT323
Category : Discrete Semiconductor Products
Family: Diodes - Rectifiers - Arrays
Series: -
In Stock:1397339
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BAW56W DComponents at chimicron.com. We have 1397339 pieces of BAW56W in stock available now. Submit an inquiry for BAW56W or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Diode Configuration1 Pair Common Anode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)75 V
Current - Average Rectified (Io) (per Diode)150mA
Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)4 ns
Current - Reverse Leakage @ Vr1 µA @ 75 V
Operating Temperature - Junction-55°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device PackageSOT-323
