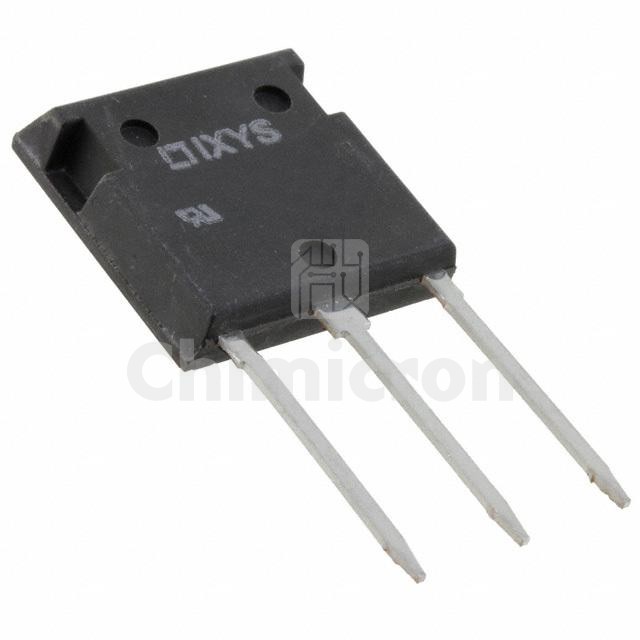

DSEE55-24N1F
Manufacturer: Wickmann / Littelfuse
Description: DIODE ARRAY GP 1200V 60A I4PAC
Category : Discrete Semiconductor Products
Family: Diodes - Rectifiers - Arrays
Series: HiPerFRED™
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DSEE55-24N1F Wickmann / Littelfuse at chimicron.com. We have 1000 pieces of DSEE55-24N1F in stock available now. Submit an inquiry for DSEE55-24N1F or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHiPerFRED™
PackageTube
Part StatusActive
Diode Configuration1 Pair Series Connection
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)1200 V
Current - Average Rectified (Io) (per Diode)60A
Voltage - Forward (Vf) (Max) @ If2.45 V @ 60 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)220 ns
Current - Reverse Leakage @ Vr1 mA @ 1200 V
Operating Temperature - Junction-55°C ~ 175°C
Mounting TypeThrough Hole
Package / Casei4-Pac™-3
Supplier Device Packagei4-PAC™
