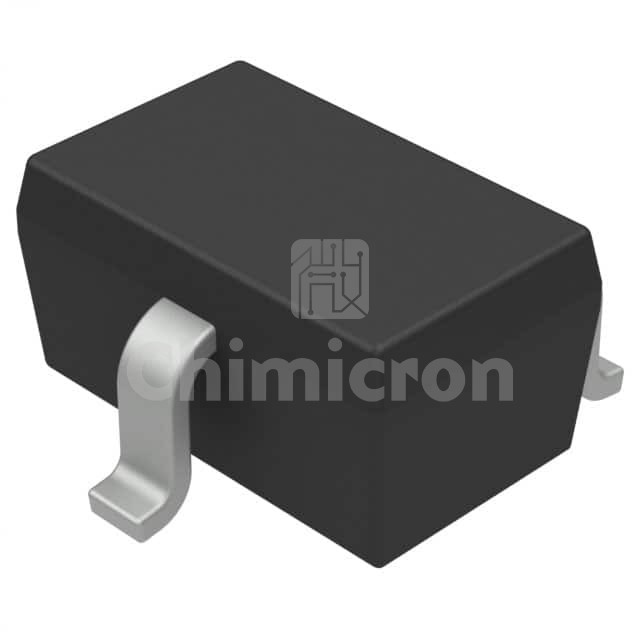

BAT54AW,115
Manufacturer: Nexperia
Description: DIODE ARRAY SCHOTTKY 30V SOT323
Category : Discrete Semiconductor Products
Family: Diodes - Rectifiers - Arrays
Series: Automotive, AEC-Q101
In Stock:77184
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BAT54AW,115 Nexperia at chimicron.com. We have 77184 pieces of BAT54AW,115 in stock available now. Submit an inquiry for BAT54AW,115 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Diode Configuration1 Pair Common Anode
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io) (per Diode)200mA (DC)
Voltage - Forward (Vf) (Max) @ If800 mV @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)5 ns
Current - Reverse Leakage @ Vr2 µA @ 25 V
Operating Temperature - Junction150°C (Max)
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device PackageSOT-323
