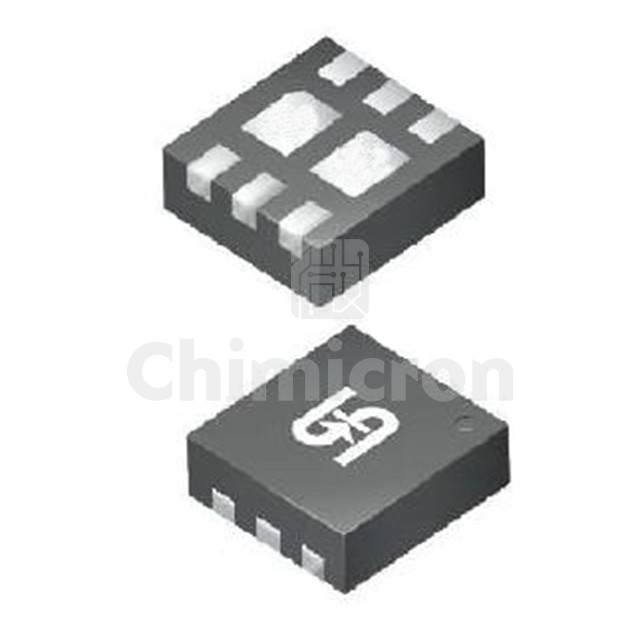

TSM250N02DCQ RFG
TSM250N02DCQ RFG

Manufacturer: TSC (Taiwan Semiconductor)

Description: MOSFET 2 N-CH 20V 5.8A 6TDFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: -
In Stock:75600
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TSM250N02DCQ RFG TSC (Taiwan Semiconductor) at chimicron.com. We have 75600 pieces of TSM250N02DCQ RFG in stock available now. Submit an inquiry for TSM250N02DCQ RFG or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C5.8A (Tc)
Rds On (Max) @ Id, Vgs25mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id800mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs7.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds775pF @ 10V
Power - Max620mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-VDFN Exposed Pad
Supplier Device Package6-TDFN (2x2)
