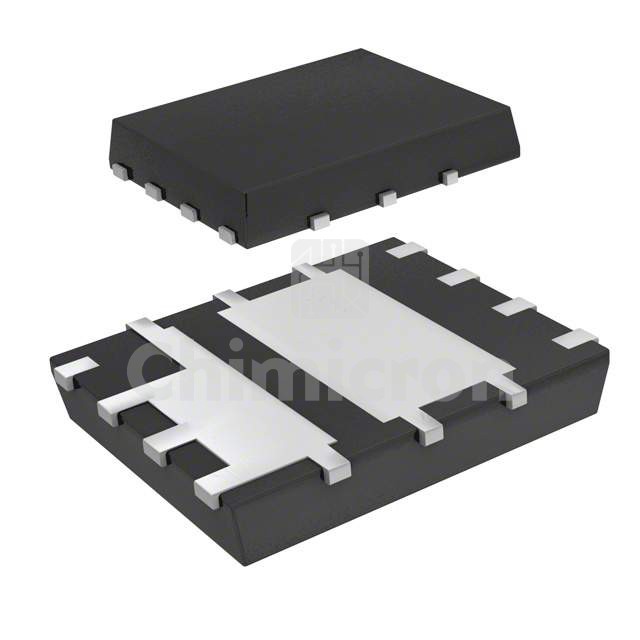

AON6932A
AON6932A

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET 2N-CH 30V 22A/36A 8DFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: -
Datasheets
In Stock:500
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AON6932A Alpha and Omega Semiconductor, Inc. at chimicron.com. We have 500 pieces of AON6932A in stock available now. Submit an inquiry for AON6932A or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusNot For New Designs
FET Type2 N-Channel (Half Bridge)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C22A, 36A
Rds On (Max) @ Id, Vgs5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs22nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1037pF @ 15V
Power - Max3.6W, 4.3W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device Package8-DFN (5x6)
