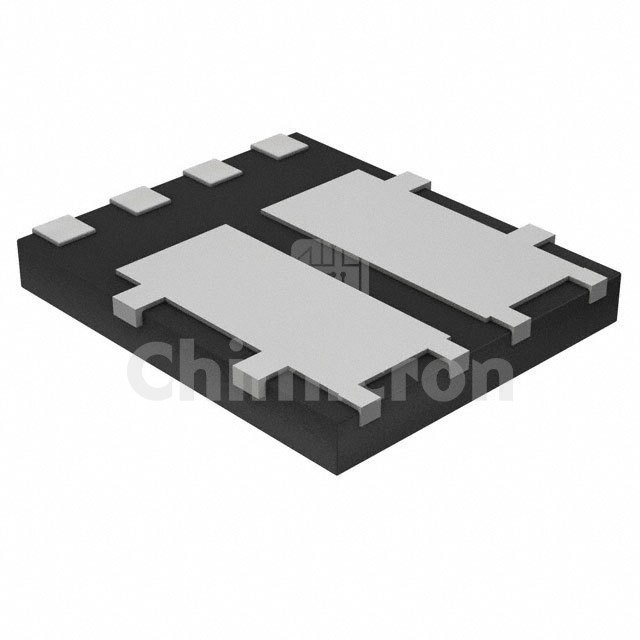

NVMFD5C446NLWFT1G
NVMFD5C446NLWFT1G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET 2N-CH 40V 145A S08FL
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: Automotive, AEC-Q101
In Stock:7500
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NVMFD5C446NLWFT1G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 7500 pieces of NVMFD5C446NLWFT1G in stock available now. Submit an inquiry for NVMFD5C446NLWFT1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25°C25A (Ta), 145A (Tc)
Rds On (Max) @ Id, Vgs2.65mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.2V @ 90µA
Gate Charge (Qg) (Max) @ Vgs25nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds3170pF @ 25V
Power - Max3.5W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device Package8-DFN (5x6) Dual Flag (SO8FL-Dual)
