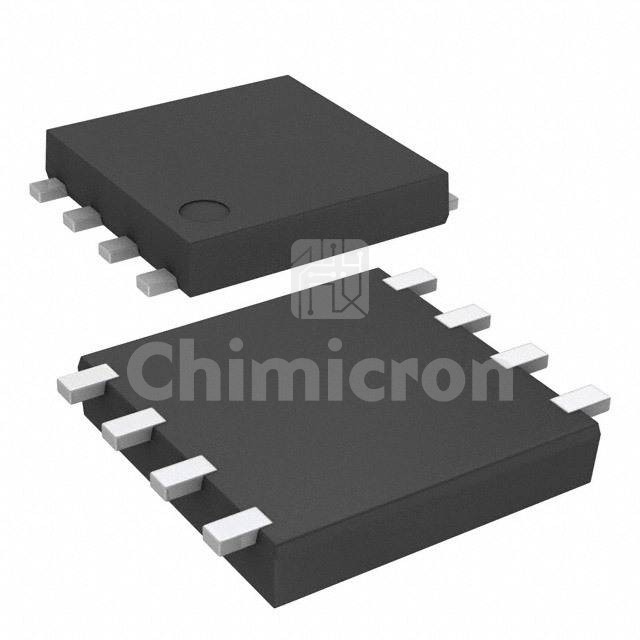

ECH8693R-TL-W
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET 2N-CH 24V 14A SOT28
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: -
In Stock:2200000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ECH8693R-TL-W Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 2200000 pieces of ECH8693R-TL-W in stock available now. Submit an inquiry for ECH8693R-TL-W or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 N-Channel (Dual) Common Drain
FET FeatureLogic Level Gate, 2.5V Drive
Drain to Source Voltage (Vdss)24V
Current - Continuous Drain (Id) @ 25°C14A
Rds On (Max) @ Id, Vgs7mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs13nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds-
Power - Max1.4W
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SMD, Flat Lead
Supplier Device PackageSOT-28FL/ECH8
