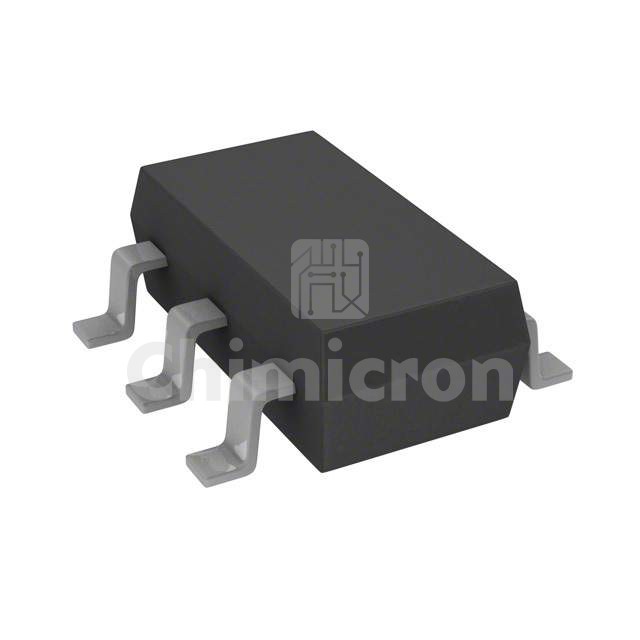

DMC2053UVT-7
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET BVDSS: 8V-24V TSOT26 T&R
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: -
In Stock:2762
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMC2053UVT-7 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 2762 pieces of DMC2053UVT-7 in stock available now. Submit an inquiry for DMC2053UVT-7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN and P-Channel Complementary
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C4.6A (Ta), 3.2A (Ta)
Rds On (Max) @ Id, Vgs35mOhm @ 5A, 4.5V, 74mOhm @ 3.5A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs3.6nC @ 4.5V, 5.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds369pF @ 10V, 440pF @ 10V
Power - Max700mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-23-6 Thin, TSOT-23-6
Supplier Device PackageTSOT-26
