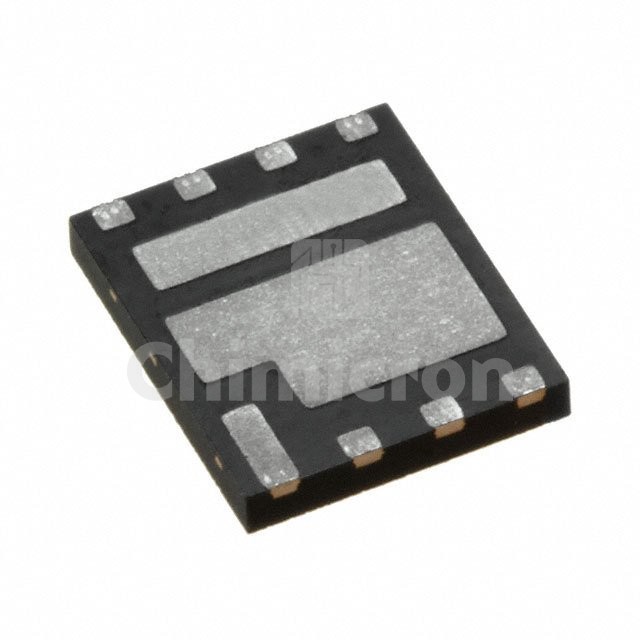

FDPC8014S
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET 2N-CH 25V 8PWRCLIP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: PowerTrench®
In Stock:140000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDPC8014S Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 140000 pieces of FDPC8014S in stock available now. Submit an inquiry for FDPC8014S or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 N-Channel (Dual) Asymmetrical
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C20A, 41A
Rds On (Max) @ Id, Vgs3.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs35nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds2375pF @ 13V
Power - Max2.1W, 2.3W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device PackagePower Clip 56
