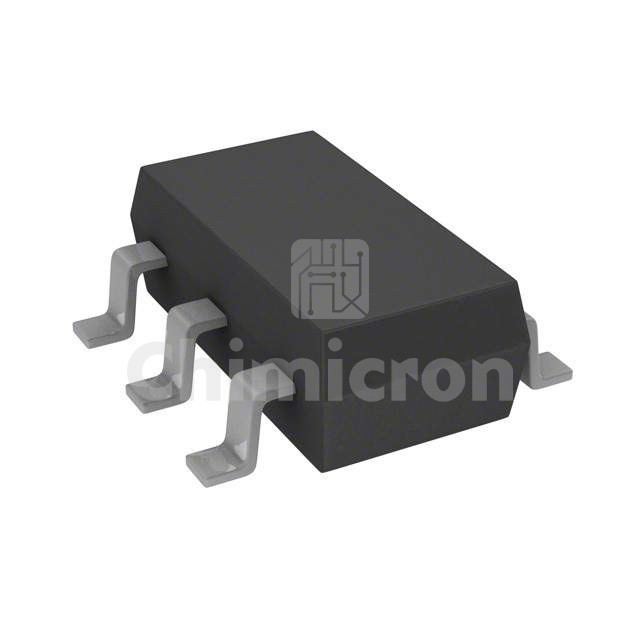

DMC3071LVT-13
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET BVDSS: 25V-30V TSOT26 T&R
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: -
In Stock:5880
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMC3071LVT-13 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 5880 pieces of DMC3071LVT-13 in stock available now. Submit an inquiry for DMC3071LVT-13 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN and P-Channel Complementary
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C4.6A (Ta), 3.3A (Ta)
Rds On (Max) @ Id, Vgs50mOhm @ 3.5A, 10V, 95mOhm @ 3.8A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4.5nC @ 10V, 6.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds190pF @ 15V, 254pF @ 15V
Power - Max700mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-23-6 Thin, TSOT-23-6
Supplier Device PackageTSOT-26
