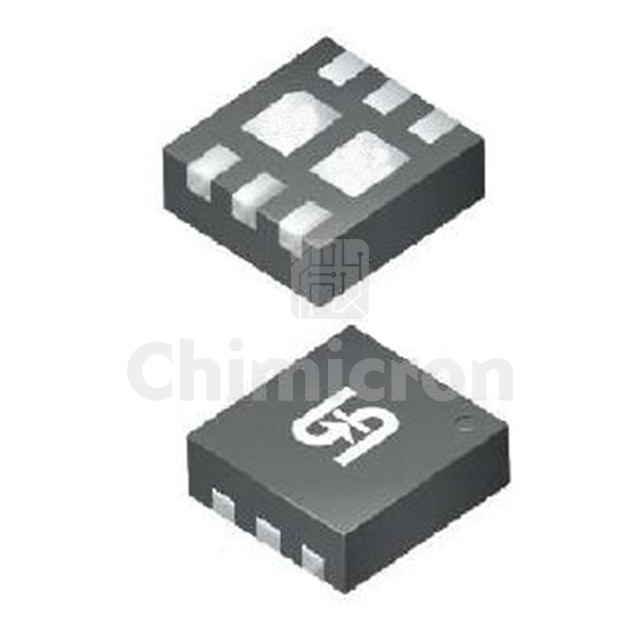

TSM2537CQ RFG
Manufacturer: TSC (Taiwan Semiconductor)
Description: MOSFET N/P-CH 20V 11.6A/9A 6TDFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: -
In Stock:21704
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TSM2537CQ RFG TSC (Taiwan Semiconductor) at chimicron.com. We have 21704 pieces of TSM2537CQ RFG in stock available now. Submit an inquiry for TSM2537CQ RFG or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN and P-Channel
FET FeatureLogic Level Gate, 1.8V Drive
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C11.6A (Tc), 9A (Tc)
Rds On (Max) @ Id, Vgs30mOhm @ 6.4A, 4.5V, 55mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs9.1nC @ 4.5V, 9.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds677pF @ 10V, 744pF @ 10V
Power - Max6.25W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-VDFN Exposed Pad
Supplier Device Package6-TDFN (2x2)
