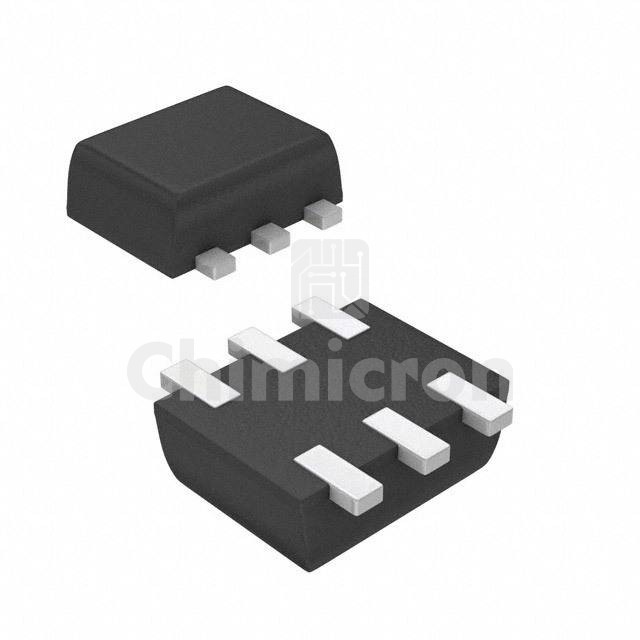

DMG1023UVQ-13
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET BVDSS: 8V-24V SOT563
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: Automotive, AEC-Q101
In Stock:21000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMG1023UVQ-13 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 21000 pieces of DMG1023UVQ-13 in stock available now. Submit an inquiry for DMG1023UVQ-13 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)
Part StatusActive
FET Type2 P-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C1.03A (Ta)
Rds On (Max) @ Id, Vgs750mOhm @ 430mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs622pC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds59pF @ 16V
Power - Max530mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-563, SOT-666
Supplier Device PackageSOT-563
