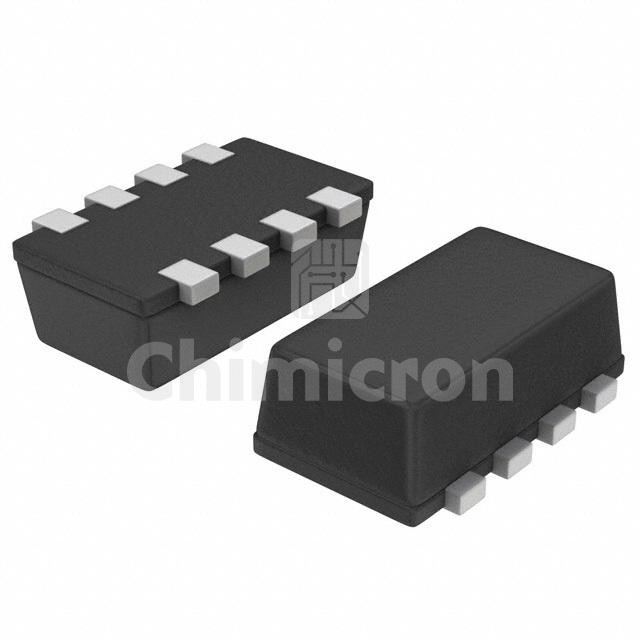

NTHC5513T1G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N/P-CH 20V CHIPFET
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: -
In Stock:1500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NTHC5513T1G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 1500 pieces of NTHC5513T1G in stock available now. Submit an inquiry for NTHC5513T1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN and P-Channel
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C2.9A, 2.2A
Rds On (Max) @ Id, Vgs80mOhm @ 2.9A, 4.5V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds180pF @ 10V
Power - Max1.1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SMD, Flat Lead
Supplier Device PackageChipFET™
