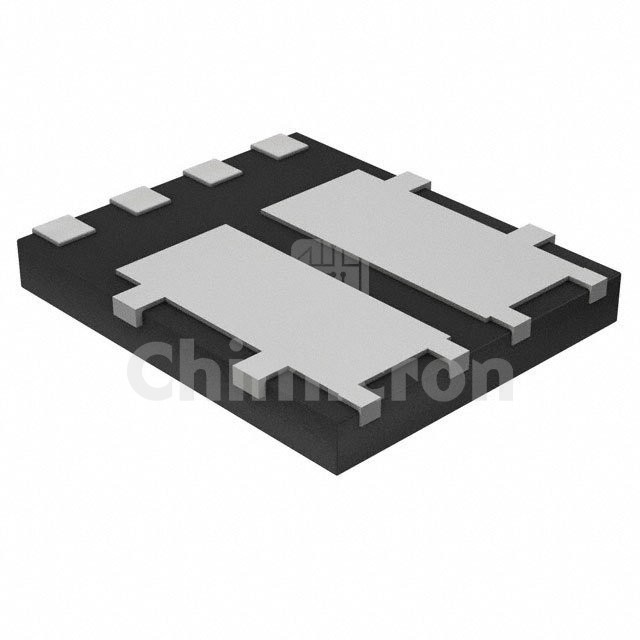

NVMFD5C680NLT1G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET 2N-CH 60V 26A S08FL
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: Automotive, AEC-Q101
In Stock:34650
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NVMFD5C680NLT1G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 34650 pieces of NVMFD5C680NLT1G in stock available now. Submit an inquiry for NVMFD5C680NLT1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C7.5A (Ta), 26A (Tc)
Rds On (Max) @ Id, Vgs28mOhm @ 5A, 10V
Vgs(th) (Max) @ Id2.2V @ 13µA
Gate Charge (Qg) (Max) @ Vgs2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds350pF @ 25V
Power - Max3W (Ta), 19W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device Package8-DFN (5x6) Dual Flag (SO8FL-Dual)
