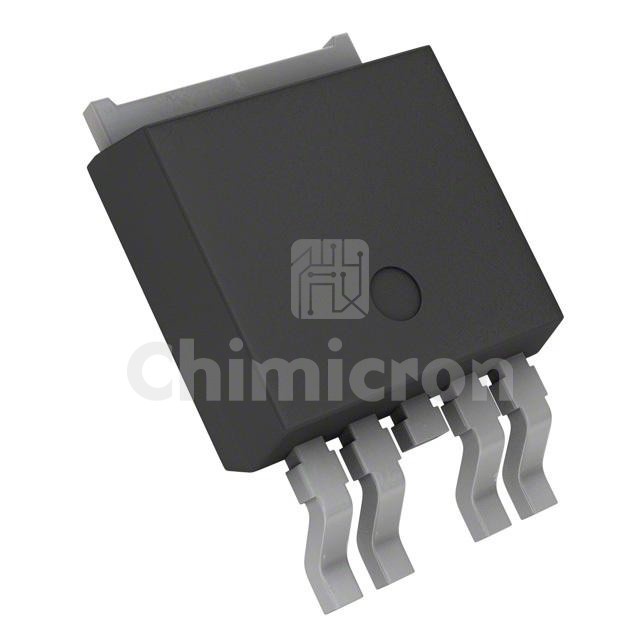

FDD3510H
FDD3510H

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N/P-CH 80V 4.3/2.8A TO252
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: PowerTrench®
In Stock:28000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDD3510H Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 28000 pieces of FDD3510H in stock available now. Submit an inquiry for FDD3510H or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN and P-Channel, Common Drain
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)80V
Current - Continuous Drain (Id) @ 25°C4.3A, 2.8A
Rds On (Max) @ Id, Vgs80mOhm @ 4.3A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs18nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds800pF @ 40V
Power - Max1.3W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device PackageTO-252-4L
