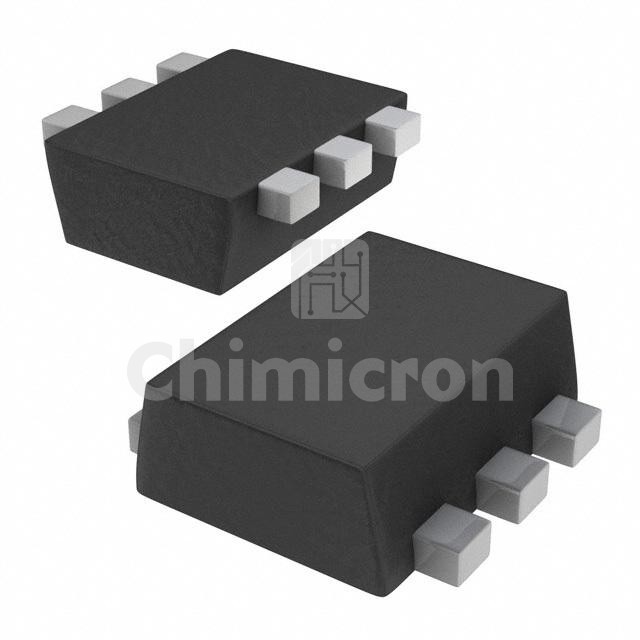

PMDT290UCE,115
Manufacturer: Nexperia
Description: MOSFET N/P-CH 20V SOT666
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: Automotive, AEC-Q101, TrenchMOS™
In Stock:23600
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PMDT290UCE,115 Nexperia at chimicron.com. We have 23600 pieces of PMDT290UCE,115 in stock available now. Submit an inquiry for PMDT290UCE,115 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, TrenchMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN and P-Channel
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C800mA, 550mA
Rds On (Max) @ Id, Vgs380mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.68nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds83pF @ 10V
Power - Max500mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-563, SOT-666
Supplier Device PackageSOT-666
