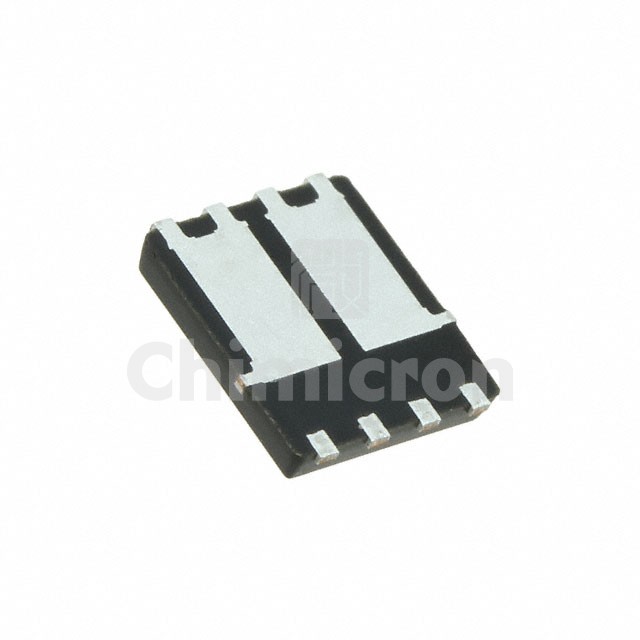

IPG20N06S2L35ATMA1
IPG20N06S2L35ATMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET 2N-CH 55V 20A 8TDSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: Automotive, AEC-Q101, OptiMOS™
In Stock:4899
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPG20N06S2L35ATMA1 IR (Infineon Technologies) at chimicron.com. We have 4899 pieces of IPG20N06S2L35ATMA1 in stock available now. Submit an inquiry for IPG20N06S2L35ATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, OptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)55V
Current - Continuous Drain (Id) @ 25°C20A
Rds On (Max) @ Id, Vgs35mOhm @ 15A, 10V
Vgs(th) (Max) @ Id2V @ 27µA
Gate Charge (Qg) (Max) @ Vgs23nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds790pF @ 25V
Power - Max65W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device PackagePG-TDSON-8-4
