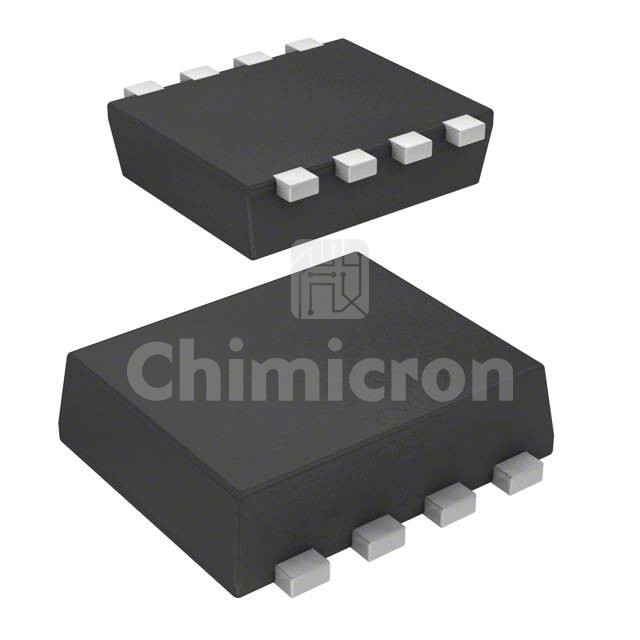

AON3814
Manufacturer: Alpha and Omega Semiconductor, Inc.
Description: MOSFET 2N-CH 20V 6A 8DFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: -
In Stock:2000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AON3814 Alpha and Omega Semiconductor, Inc. at chimicron.com. We have 2000 pieces of AON3814 in stock available now. Submit an inquiry for AON3814 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
FET Type2 N-Channel (Dual) Common Drain
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C-
Rds On (Max) @ Id, Vgs17mOhm @ 6A, 4.5V
Vgs(th) (Max) @ Id1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs13nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1100pF @ 10V
Power - Max2.5W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SMD, Flat Lead
Supplier Device Package8-DFN (2.9x2.3)
