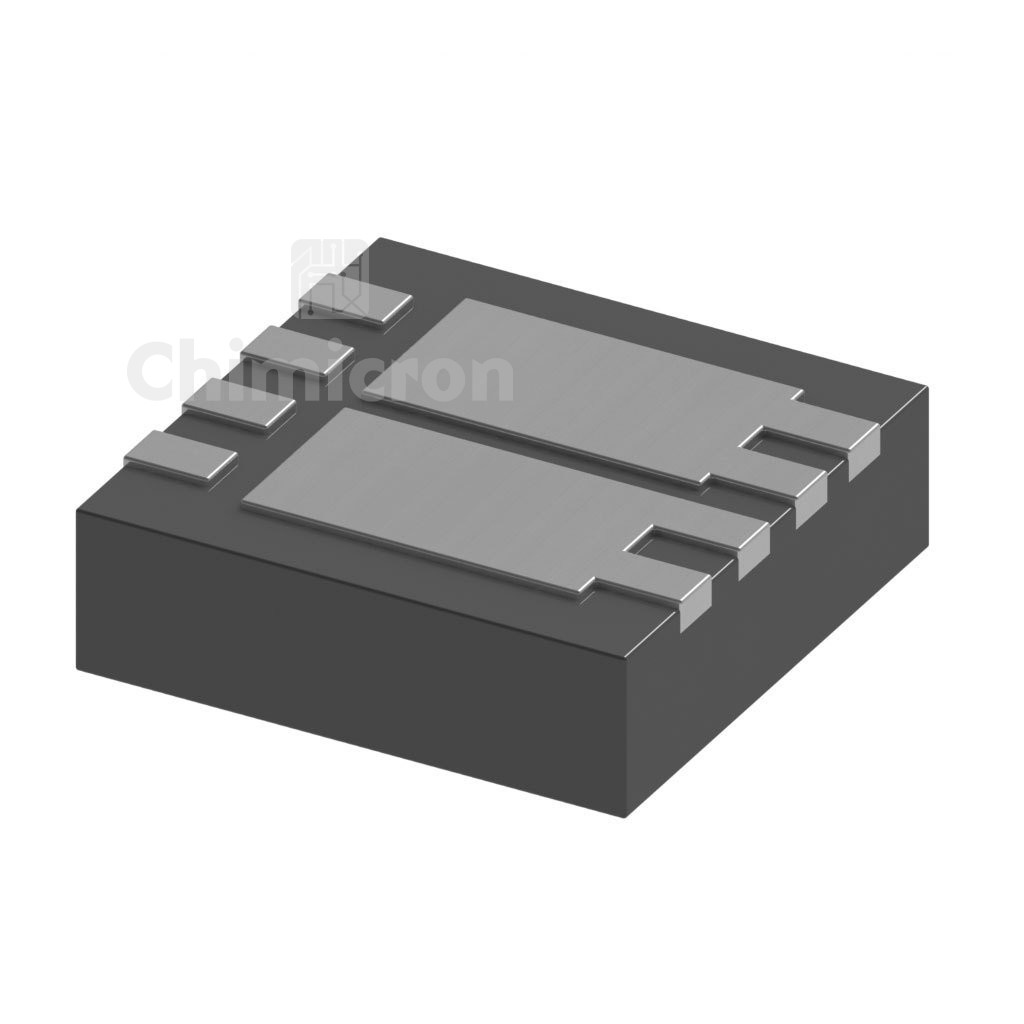

CSD87503Q3ET
Manufacturer: Texas
Description: 30-V DUAL N-CHANNEL MOSFET, COMM
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: NexFET™
In Stock:1313
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD87503Q3ET Texas at chimicron.com. We have 1313 pieces of CSD87503Q3ET in stock available now. Submit an inquiry for CSD87503Q3ET or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 N-Channel (Dual) Common Source
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C10A (Ta)
Rds On (Max) @ Id, Vgs-
Vgs(th) (Max) @ Id2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs17.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1020pF @ 15V
Power - Max15.6W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device Package8-VSON (3.3x3.3)
