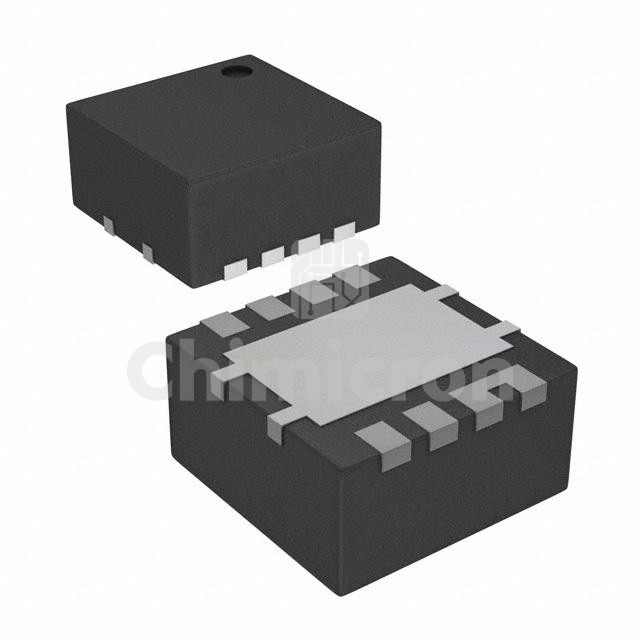

CSD86336Q3D
Manufacturer: Texas
Description: 25V POWERBLOCK N CH MOSFET
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: NexFET™
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD86336Q3D Texas at chimicron.com. We have 5000 pieces of CSD86336Q3D in stock available now. Submit an inquiry for CSD86336Q3D or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureLogic Level Gate, 5V Drive
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C20A (Ta)
Rds On (Max) @ Id, Vgs9.1mOhm @ 20A, 5V, 3.4mOhm @ 20A, 5V
Vgs(th) (Max) @ Id1.9V @ 250µA, 1.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs3.8nC @ 45V, 7.4nC @ 45V
Input Capacitance (Ciss) (Max) @ Vds494pF @ 12.5V, 970pF @ 12.5V
Power - Max6W
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device Package8-VSON (3.3x3.3)
