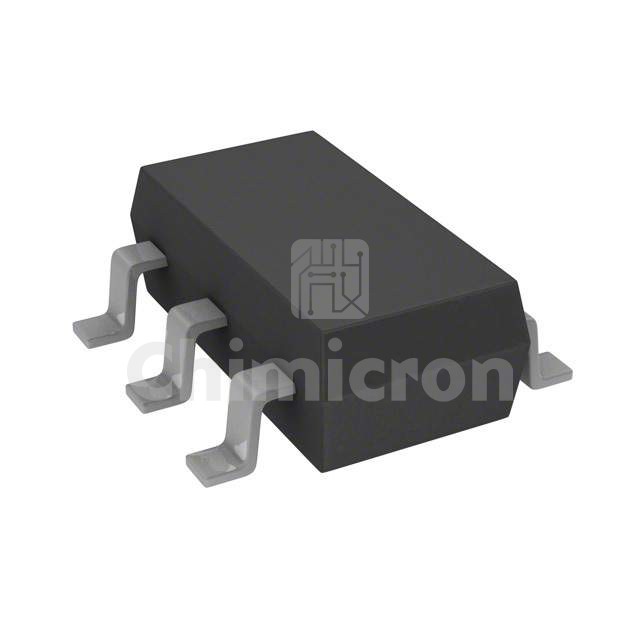

DMC3730UVT-13
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET BVDSS: 25V-30V TSOT26 T&R
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: Automotive, AEC-Q101
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMC3730UVT-13 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 100000 pieces of DMC3730UVT-13 in stock available now. Submit an inquiry for DMC3730UVT-13 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)
Part StatusActive
FET TypeN and P-Channel Complementary
FET FeatureStandard
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C680mA (Ta), 460mA (Ta)
Rds On (Max) @ Id, Vgs450mOhm @ 500mA, 4.5V, 1.1Ohm @ 500mA, 4.5V
Vgs(th) (Max) @ Id1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1.64nC @ 4.5V, 1.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds50pF @ 10V, 63pF @ 10V
Power - Max700mW
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-23-6 Thin, TSOT-23-6
Supplier Device PackageTSOT-26
