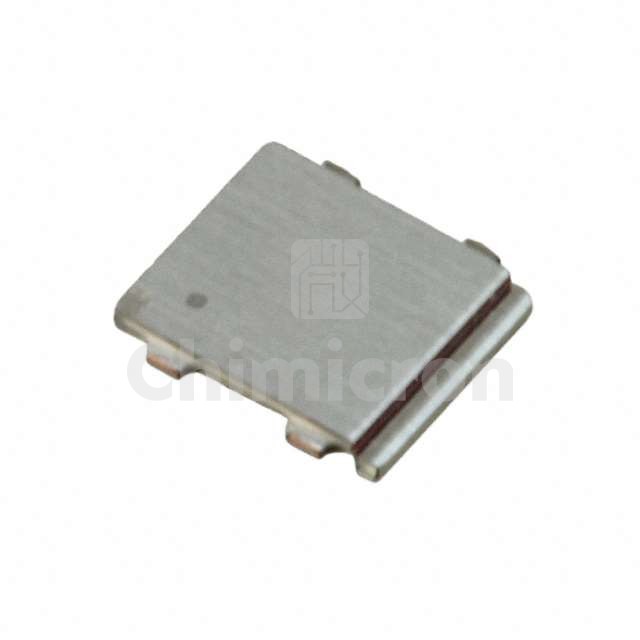

CSD87381P
Manufacturer: Texas
Description: MOSFET 2N-CH 30V 15A 5PTAB
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: NexFET™
In Stock:21300
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD87381P Texas at chimicron.com. We have 21300 pieces of CSD87381P in stock available now. Submit an inquiry for CSD87381P or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C15A
Rds On (Max) @ Id, Vgs16.3mOhm @ 8A, 8V
Vgs(th) (Max) @ Id1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds564pF @ 15V
Power - Max4W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case5-LGA
Supplier Device Package5-PTAB (3x2.5)
