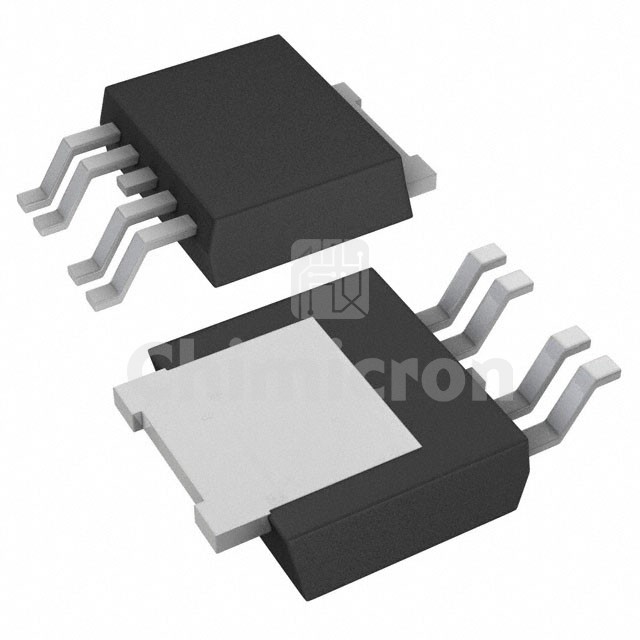

AOD609
Manufacturer: Alpha and Omega Semiconductor, Inc.
Description: MOSFET N/P-CH 40V 12A TO252-4
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: -
In Stock:12600
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AOD609 Alpha and Omega Semiconductor, Inc. at chimicron.com. We have 12600 pieces of AOD609 in stock available now. Submit an inquiry for AOD609 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusNot For New Designs
FET TypeN and P-Channel, Common Drain
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25°C12A
Rds On (Max) @ Id, Vgs30mOhm @ 12A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs10.8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds650pF @ 20V
Power - Max2W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device PackageTO-252-4L
