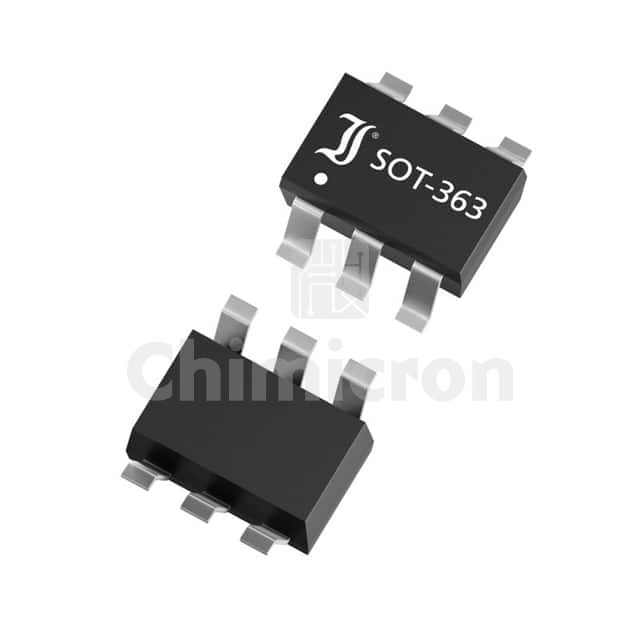

BCR22PN
Manufacturer: Diotec Semiconductor
Description: DIGITAL TR SOT-363 60V 100MA
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Series: -
In Stock:300000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BCR22PN Diotec Semiconductor at chimicron.com. We have 300000 pieces of BCR22PN in stock available now. Submit an inquiry for BCR22PN or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)60V
Resistor - Base (R1)22kOhms
Resistor - Emitter Base (R2)22kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce70 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)100nA (ICBO)
Frequency - Transition170MHz
Power - Max250mW
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSOT-363
