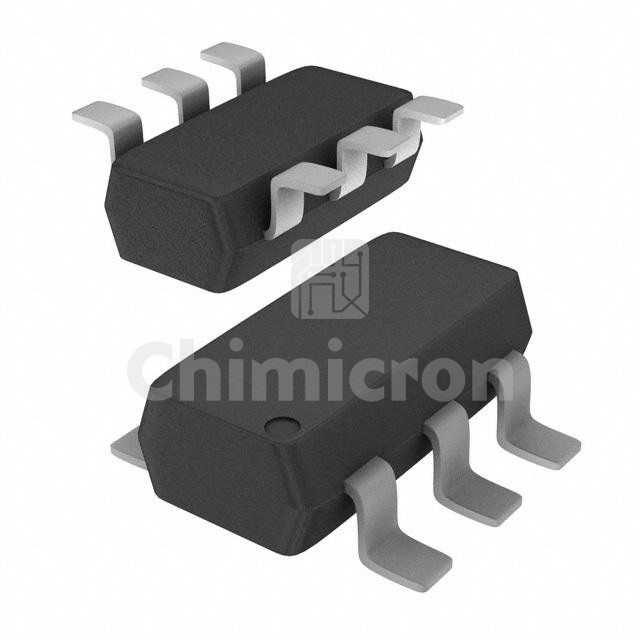

NSVIMD10AMT1G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: SURF MT BIASED RES XSTR
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Series: Automotive, AEC-Q101
In Stock:871108
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NSVIMD10AMT1G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 871108 pieces of NSVIMD10AMT1G in stock available now. Submit an inquiry for NSVIMD10AMT1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)500mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)13kOhms, 130Ohms
Resistor - Emitter Base (R2)10kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 1mA, 5V / 68 @ 100mA, 5V
Vce Saturation (Max) @ Ib, Ic300mV @ 1mA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max285mW
Mounting TypeSurface Mount
Package / CaseSOT-23-6 Thin, TSOT-23-6
Supplier Device PackageSC-74R
