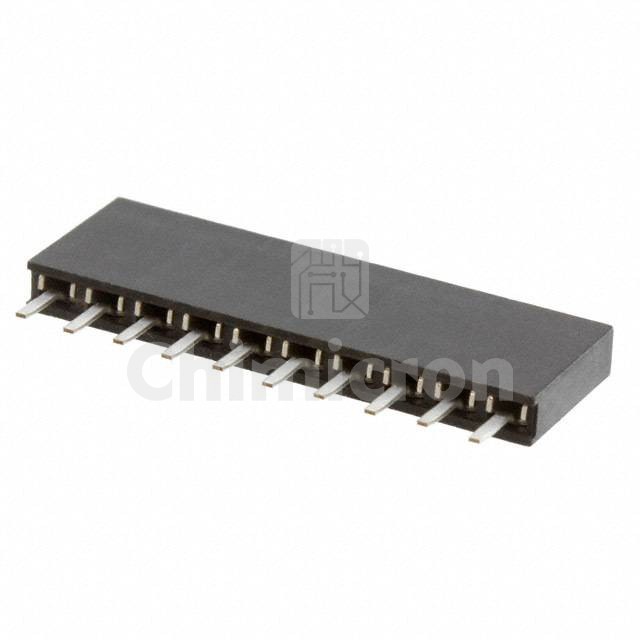

M20-7821046
Manufacturer: Harwin
Description: CONN RCPT 10POS 0.1 TIN PCB
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: M20
In Stock:20000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the M20-7821046 Harwin at chimicron.com. We have 20000 pieces of M20-7821046 in stock available now. Submit an inquiry for M20-7821046 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesM20
PackageTube
Part StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board or Cable
Number of Positions10
Number of Positions LoadedAll
Pitch - Mating0.100" (2.54mm)
Number of Rows1
Row Spacing - Mating-
Mounting TypeThrough Hole
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingTin
Contact Finish Thickness - Mating-
Insulation ColorBlack
Insulation Height0.335" (8.51mm)
Contact Length - Post0.118" (3.00mm)
Operating Temperature-40°C ~ 105°C
Material Flammability RatingUL94 V-0
Contact Finish - PostTin
Mated Stacking Heights11.04mm, 12.63mm
Ingress Protection-
Features-
Current Rating (Amps)3A
Voltage Rating1000V
