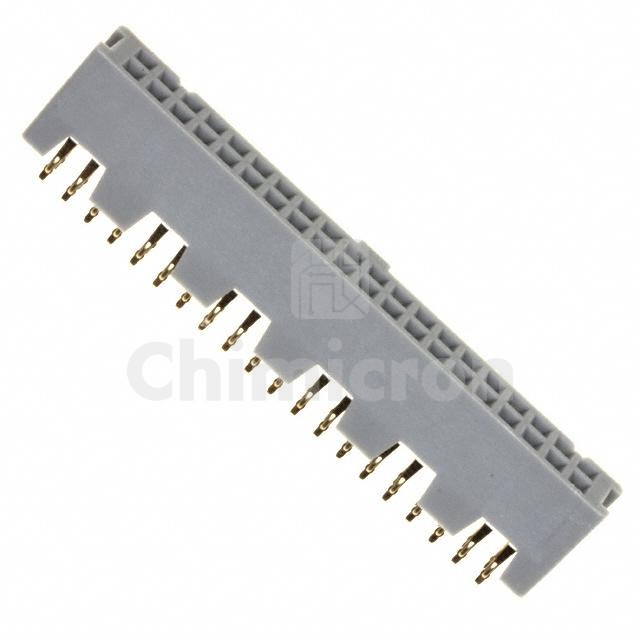

8540-4500PL
Manufacturer: 3M
Description: CONN RCPT 40POS 0.1 GOLD PCB
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: 8500
In Stock:3500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 8540-4500PL 3M at chimicron.com. We have 3500 pieces of 8540-4500PL in stock available now. Submit an inquiry for 8540-4500PL or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series8500
PackageBulk
Part StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board or Cable
Number of Positions40
Number of Positions LoadedAll
Pitch - Mating0.100" (2.54mm)
Number of Rows2
Row Spacing - Mating0.100" (2.54mm)
Mounting TypeThrough Hole
TerminationKinked Pin, Solder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - Mating12.0µin (0.30µm)
Insulation ColorGray
Insulation Height0.425" (10.80mm)
Contact Length - Post0.110" (2.79mm)
Operating Temperature-55°C ~ 105°C
Material Flammability RatingUL94 V-0
Contact Finish - PostGold
Mated Stacking Heights-
Ingress Protection-
FeaturesPolarizing Key
Current Rating (Amps)1A
Voltage Rating1000V
