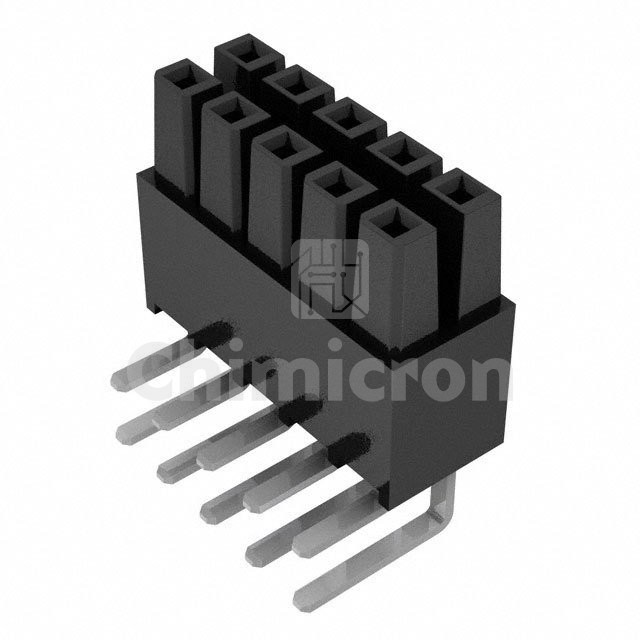

IPS1-105-01-S-D-RA
Manufacturer: Samtec, Inc.
Description: CONN RCPT 10POS 0.1 GOLD PCB R/A
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: Mini Mate® IPS1
In Stock:215000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPS1-105-01-S-D-RA Samtec, Inc. at chimicron.com. We have 215000 pieces of IPS1-105-01-S-D-RA in stock available now. Submit an inquiry for IPS1-105-01-S-D-RA or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesMini Mate® IPS1
PackageTube
Part StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board
Number of Positions10
Number of Positions LoadedAll
Pitch - Mating0.100" (2.54mm)
Number of Rows2
Row Spacing - Mating0.100" (2.54mm)
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - Mating30.0µin (0.76µm)
Insulation ColorBlack
Insulation Height0.195" (4.95mm)
Contact Length - Post0.100" (2.54mm)
Operating Temperature-55°C ~ 125°C
Material Flammability Rating-
Contact Finish - PostTin
Mated Stacking Heights-
Ingress Protection-
Features-
Current Rating (Amps)-
Voltage Rating775VAC, 1095VDC
