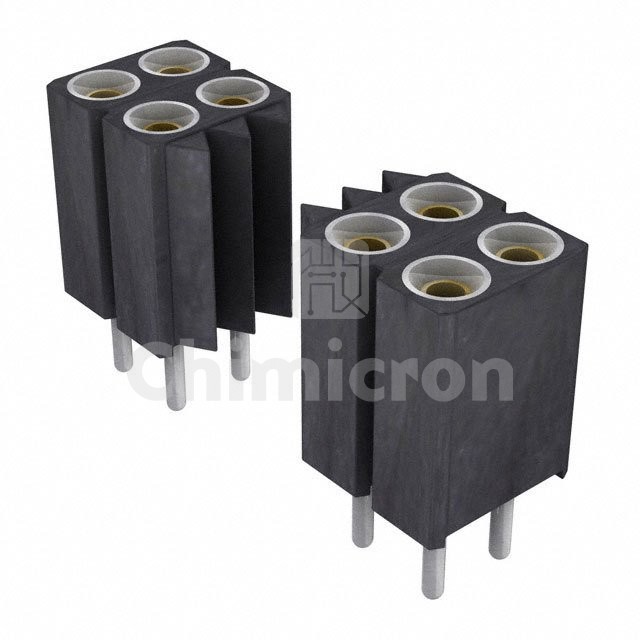

803-87-020-10-001101
Manufacturer: Preci-Dip
Description: CONN SOCKET 20POS 0.1 GOLD PCB
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: 803
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 803-87-020-10-001101 Preci-Dip at chimicron.com. We have 1000 pieces of 803-87-020-10-001101 in stock available now. Submit an inquiry for 803-87-020-10-001101 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series803
PackageBulk
Part StatusActive
Connector TypeSocket
Contact TypeFemale Socket
StyleBoard to Board
Number of Positions20
Number of Positions LoadedAll
Pitch - Mating0.100" (2.54mm)
Number of Rows2
Row Spacing - Mating0.100" (2.54mm)
Mounting TypeThrough Hole
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - MatingFlash
Insulation ColorBlack
Insulation Height0.276" (7.00mm)
Contact Length - Post0.118" (3.00mm)
Operating Temperature-55°C ~ 125°C
Material Flammability RatingUL94 V-0
Contact Finish - PostTin
Mated Stacking Heights-
Ingress Protection-
Features-
Current Rating (Amps)3A
Voltage Rating-
