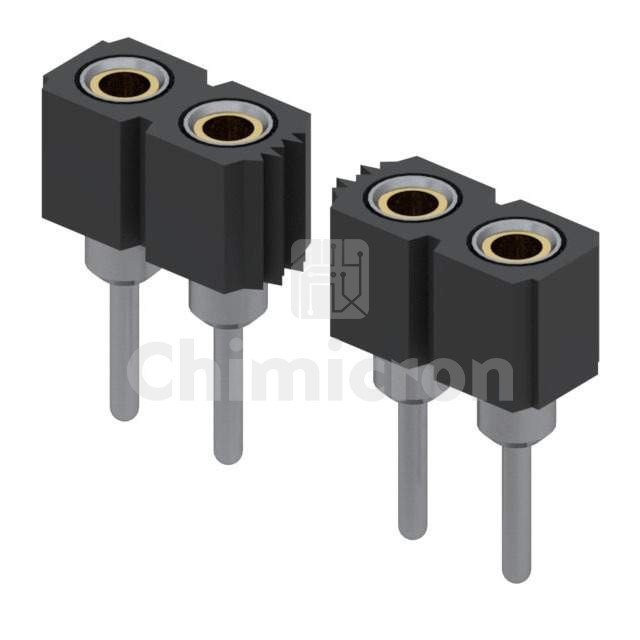

801-43-011-10-002000
801-43-011-10-002000

Manufacturer: Mill-Max

Description: CONN RCPT 11POS 0.1 GOLD PCB
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: 801
In Stock:118200
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 801-43-011-10-002000 Mill-Max at chimicron.com. We have 118200 pieces of 801-43-011-10-002000 in stock available now. Submit an inquiry for 801-43-011-10-002000 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series801
PackageTube
Part StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board
Number of Positions11
Number of Positions LoadedAll
Pitch - Mating0.100" (2.54mm)
Number of Rows1
Row Spacing - Mating-
Mounting TypeThrough Hole
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - Mating30.0µin (0.76µm)
Insulation ColorBlack
Insulation Height0.165" (4.20mm)
Contact Length - Post0.125" (3.18mm)
Operating Temperature-55°C ~ 125°C
Material Flammability RatingUL94 V-0
Contact Finish - PostTin
Mated Stacking Heights-
Ingress Protection-
Features-
Current Rating (Amps)4.5A
Voltage Rating-
