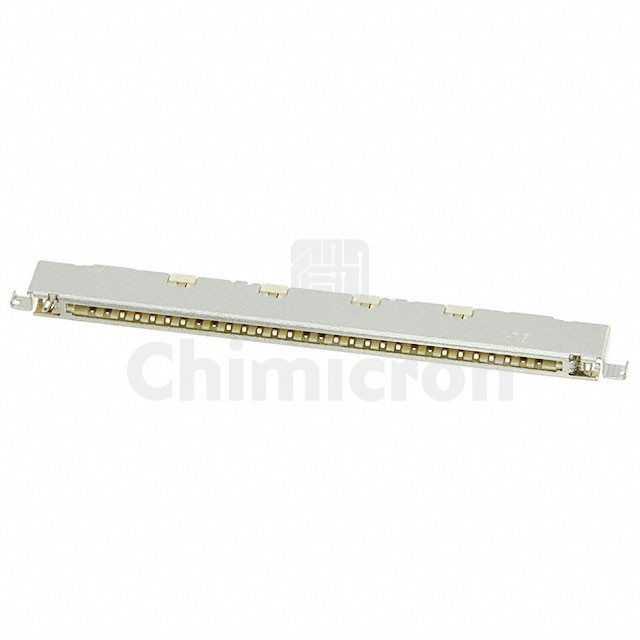

MDF76GW-30S-1H(55)
Manufacturer: Hirose
Description: CONN RCPT 30P 0.039 GOLD SMD R/A
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: MDF76
In Stock:6416
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MDF76GW-30S-1H(55) Hirose at chimicron.com. We have 6416 pieces of MDF76GW-30S-1H(55) in stock available now. Submit an inquiry for MDF76GW-30S-1H(55) or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesMDF76
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Connector TypeReceptacle
Contact TypeCenter Strip Contact
StyleBoard to Cable/Wire
Number of Positions30
Number of Positions LoadedAll
Pitch - Mating0.039" (1.00mm)
Number of Rows1
Row Spacing - Mating-
Mounting TypeSurface Mount, Right Angle
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - Mating3.90µin (0.099µm)
Insulation ColorBeige
Insulation Height0.091" (2.30mm)
Contact Length - Post-
Operating Temperature-40°C ~ 85°C
Material Flammability RatingUL94 V-0
Contact Finish - PostGold
Mated Stacking Heights-
Ingress Protection-
FeaturesSolder Retention
Current Rating (Amps)Varies by Wire Gauge
Voltage Rating200VAC
