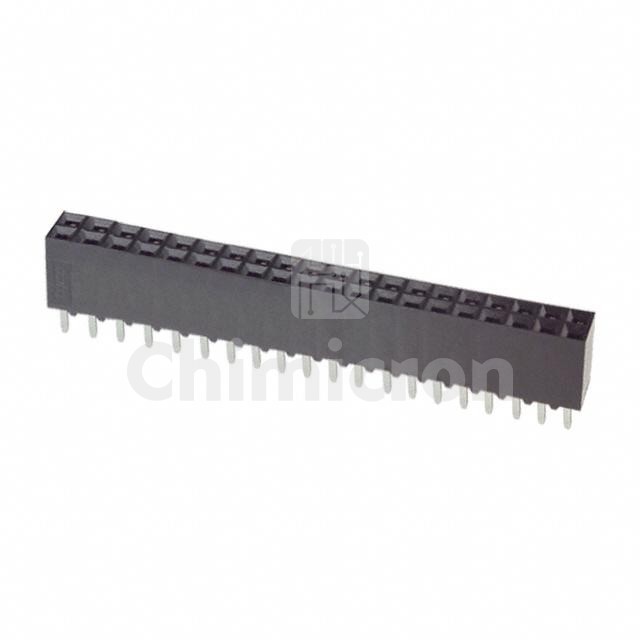

2-534206-0
Manufacturer: TE Connectivity AMP Connectors
Description: CONN RCPT 40POS 0.1 GOLD PCB
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: AMPMODU Mod II
In Stock:4466
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 2-534206-0 TE Connectivity AMP Connectors at chimicron.com. We have 4466 pieces of 2-534206-0 in stock available now. Submit an inquiry for 2-534206-0 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAMPMODU Mod II
PackageTube
Part StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board or Cable
Number of Positions40
Number of Positions LoadedAll
Pitch - Mating0.100" (2.54mm)
Number of Rows2
Row Spacing - Mating0.100" (2.54mm)
Mounting TypeThrough Hole
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - Mating30.0µin (0.76µm)
Insulation ColorBlack
Insulation Height0.320" (8.13mm)
Contact Length - Post0.115" (2.92mm)
Operating Temperature-65°C ~ 125°C
Material Flammability Rating-
Contact Finish - PostTin-Lead
Mated Stacking Heights-
Ingress Protection-
Features-
Current Rating (Amps)2A
Voltage Rating-
