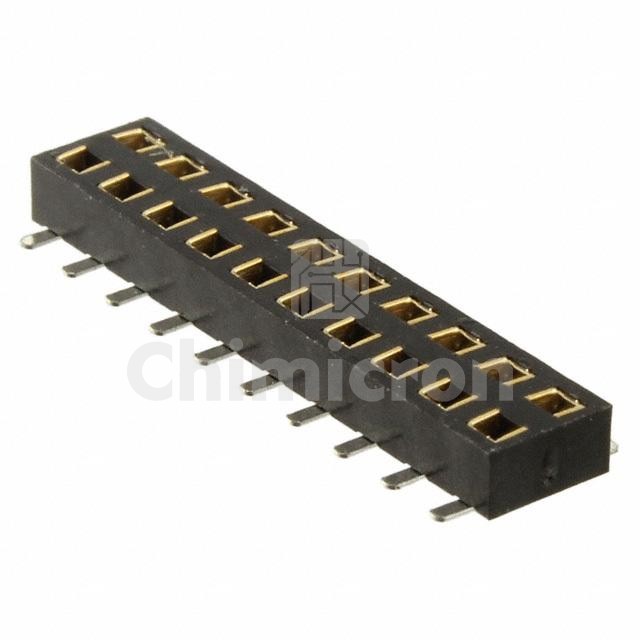

M22-6361042
Manufacturer: Harwin
Description: CONN RCPT 20POS 0.079 GOLD SMD
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: M22
In Stock:500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the M22-6361042 Harwin at chimicron.com. We have 500 pieces of M22-6361042 in stock available now. Submit an inquiry for M22-6361042 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesM22
PackageTube
Part StatusActive
Connector TypeReceptacle, Bottom or Top Entry
Contact TypeFemale Socket
StyleBoard to Board or Cable
Number of Positions20
Number of Positions LoadedAll
Pitch - Mating0.079" (2.00mm)
Number of Rows2
Row Spacing - Mating0.079" (2.00mm)
Mounting TypeSurface Mount
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - MatingFlash
Insulation ColorBlack
Insulation Height0.079" (2.00mm)
Contact Length - Post-
Operating Temperature-40°C ~ 105°C
Material Flammability RatingUL94 V-0
Contact Finish - PostTin
Mated Stacking Heights3.6mm, 4.35mm, 4.6mm
Ingress Protection-
FeaturesBoard Guide
Current Rating (Amps)2A
Voltage Rating-
