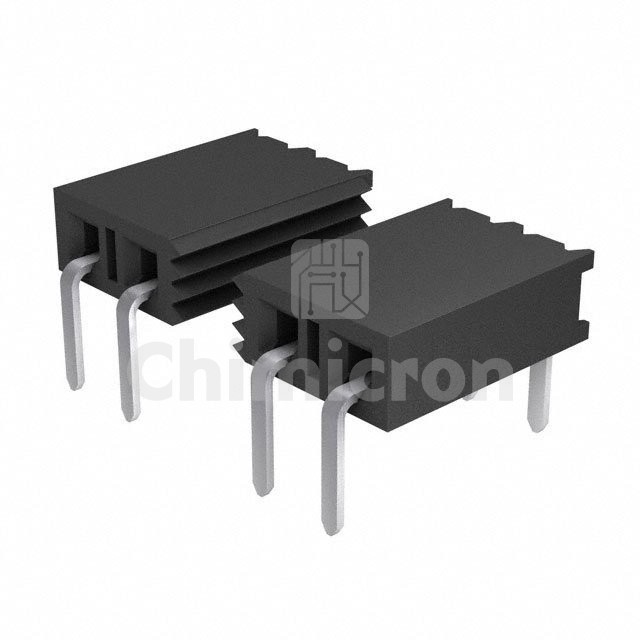

BCS-120-L-S-HE
Manufacturer: Samtec, Inc.
Description: CONN RCPT 20POS 0.1 GOLD PCB R/A
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: Tiger Claw™ BCS
In Stock:26335
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BCS-120-L-S-HE Samtec, Inc. at chimicron.com. We have 26335 pieces of BCS-120-L-S-HE in stock available now. Submit an inquiry for BCS-120-L-S-HE or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTiger Claw™ BCS
PackageTube
Part StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board
Number of Positions20
Number of Positions LoadedAll
Pitch - Mating0.100" (2.54mm)
Number of Rows1
Row Spacing - Mating-
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - Mating10.0µin (0.25µm)
Insulation ColorBlack
Insulation Height0.125" (3.18mm)
Contact Length - Post0.125" (3.18mm)
Operating Temperature-55°C ~ 125°C
Material Flammability RatingUL94 V-0
Contact Finish - PostTin
Mated Stacking Heights-
Ingress Protection-
Features-
Current Rating (Amps)4.6A per Contact
Voltage Rating475VAC
